SHPNOT (Prealert notification)
This documentation is also true for SHPNOTRET monitoring dashboard Retention period : 8 days including current day
BU > FT: data sent from BusinessUnit to Fasttrack

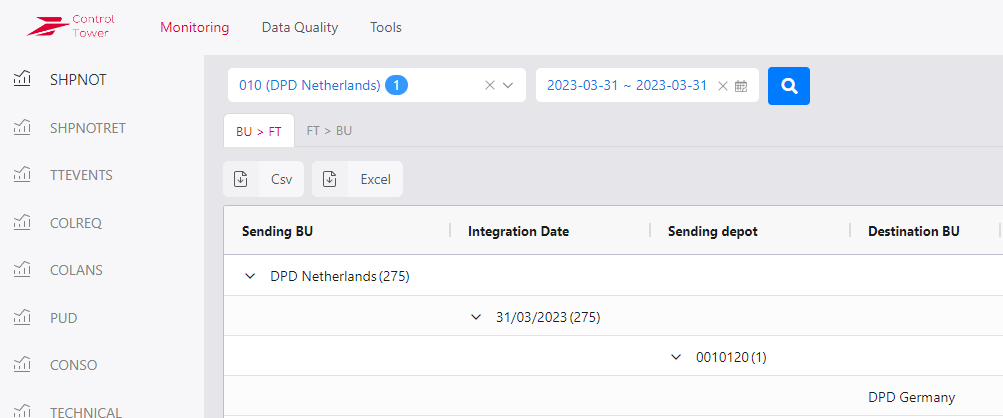

Research criteria
- BU (depending your access): BU (or application) that send information to Fasttrack
- Date based on the integration date & time it has been integrated in Fasttrack.
- You can select one day or a period of day
- If you select more the 5 BUs you will be force to pick up only 1 day
Chart
- SHPNOT Integration: Provide evolution of the integration over the selected period
- Rule number raised : Provide the top 5 of functional and routing rules raised based on criterias. We are searching for SHP and RTG
- Functional errors & Routed errors (by clicking on the chart you will be redirected to functional error screen):
- Errors: Rejected SHPNOT (ERROR SHP) / Sent in FT
- Warn : Warnings SHPNOT (WARN SHP) / Sent in FT
- Routed errors : Rejected SHPNOT (ERROR RTG) / Sent in FT
Grid - Default Breakdown level (learn how to modify their position here)
- Sending BU
- Sending BU / Integration Date
- Sending BU / Integration Date / Sending Depot
- Sending BU / Integration Date / Sending Depot / Destination BU
Grid - Column description
| Column Title | Column Description |
|---|---|
| Sending BU | Your Business Unit as sending data to FastTrack and going towards another Business Unit (can be your BU for domestic flows) |
| Integration Date | Date & time when the event has been integrated in FastTrack |
| Sending Depot | Your BU’s depots from which the SHPNOTS (SHPNOTRET) have been created |
| Destination BU | The Business Unit towards the messages from your BU should be routed to |
| Sent in FT | This is the number of SHPNOT that FastTrack receivedfrom your Business Unit on a specific date |
| Warnings checked | Number of SHPNOTS that went through the Warning Functional validation. |
| Warnings | Number of SHPNOTS which raised at least one warning from the functional validation rules in FastTrack |
| Warning ratio | Percentage of SHPNOTS which raised at least one warning from the functional rules. Formula: Warnings/Warnings Checked |
| Rejected | Number of SHPNOTS which raised at least one error from the functional validation rules in FastTrack and were consequently not routed. Unlike the Warnings, SHP-ERROR are all tested |
| Passed | Number of SHPNOTS which went through the functional validation rules (includes all SHPNOTS which raised warnings only) |
| Rejected Ratio | Percentage of SHPNOTS which raised at least one error from the functional rules. Formula: Rejected/Sent in FT |
| Not routed | Number of SHPNOTS which raised at least on routing error from the routing rules and were consequently not routed |
| Routed | Number of SHPNOTS that have successfully been routed to the Destination Business Unit |
| Routed to Derrick | Number of SHPNOTS that have successfully been routed to Derrick |
| Routed to BI | Count of SHPNOTS that have been routed from FastTrack to Teradata |
| BI ratio | percentage of SHPNOTS that have successfully been routed from FastTrack to Teradata |
| Routed to Cassandra | Count of SHPNOTS that have been routed from FastTrack to Cassandra |
| Cassandra ratio | percentage of SHPNOTS that have successfully been routed from FastTrack to Cassandra |
FT > BU: data sent from Fasttrack to Business Unit
Research criteria
- BU (depending your access): BU (or application) where event has been routed
- Date based on the integration date & time it has been integrated in Fasttrack.
- You can select one day or a period of day
- If you select more the 5 BUs you will be force to pick up only 1 day
Chart
- SHPNOT routed to BU: Provide evolution of the events routed over the selected period
- Origin BU : Provide the top 5 BUs that generated those events
- Endpoint Healthcheck: Provide information about the status of the endpoint
Grid - Default Breakdown level (learn how to modify their position here)
- Destination BU
- Destination BU / Integration Date
- Destination BU / Integration Date / Origin BU
Grid - Column description
| Column Title | Column Description |
|---|---|
| Destination BU | Your Business Unit as receiving SHPNOTS from FastTrack for flows coming from another Business Unit (can be your BU for domestic flows) |
| Integration Date | Date & time when the event has been integrated in FastTrack |
| Origin BU | Business Unit from which the SHPNOT routed to your BU is coming from |
| Received | Count of SHPNOTS that were successfully routed to your Business Unit |
| Routing errors | Number of SHPNOTS which raised at least one routing error from the routing rules and were consequently not routed |
| Rejected | Number of SHPNOTS which raised at least one error from the functional validation rules in FastTrack and were consequently not routed |
| Rejected Ratio | Percentage of SHPNOTS which raised at least one error from the functional rules |
| To be received | Count of SHPNOTS that are supposed to be routed to the destination BU if it all goes through the different sets of rules and can be successfully routed. |
| Warnings checked | Number of SHPNOTS that went through the Warning Functional validation. |
| Warnings | Number of SHPNOTS which raised at least one warning from the functional validation rules in FastTrack 21 |
| Warning ratio | Percentage of SHPNOTS which raised at least one warning from the functional rules. Formula: Warnings/Warnings Checked |
